Product Name:4 flute flat end mills
|
Brand ： |
PUWEI |
|
End Mills specifications： |
4 flute |
|
Coating： |
AI Tin |
|
End mill product material： |
Tungsten steel |
|
Spiral Angle： |
35° |
|
Yieldly： |
ZhuZhou，HuNan，China |

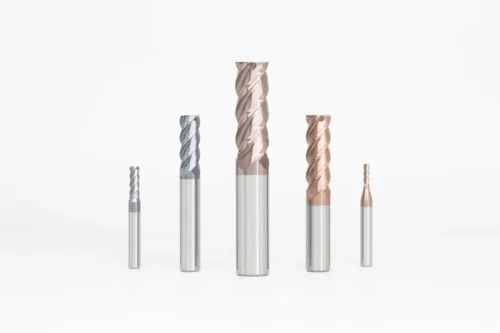

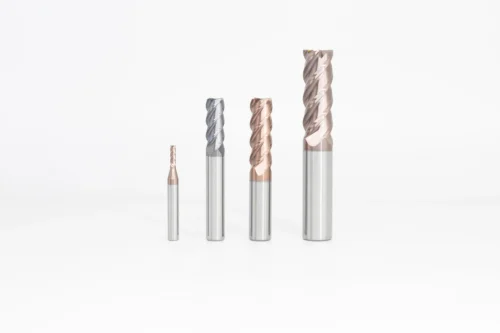

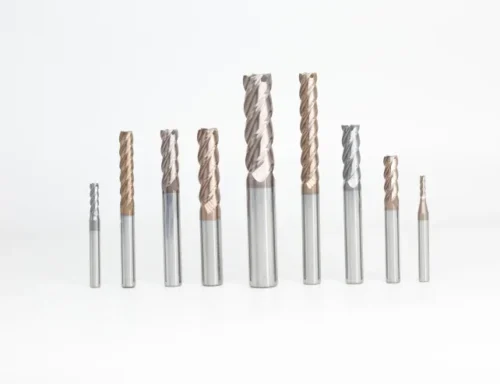

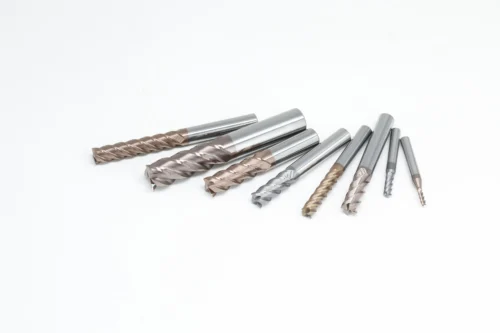

puwei 4 flute end mills product details
PW’s Economical series for universal machining,with AITiN coating and excellent wear resistance.Higher feed rates and improved metal removal rate for efficient machining ,due to high stability of cutting edge and rigid tool structure.
end mills product adavantages
Efficient processing, due to the number of blades, each tooth feed to obtain a higher speed
The large number of edges makes the cutting process more stable and can reduce the workload of the subsequent polishing process
end mills product disadvantages
Because of the large number of edges, row cutting is easy to accumulate around the tool
