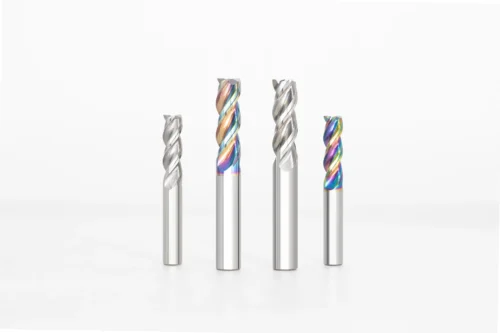

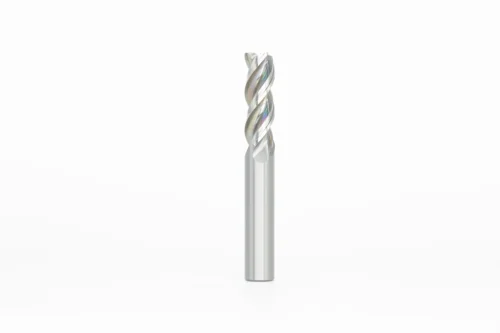

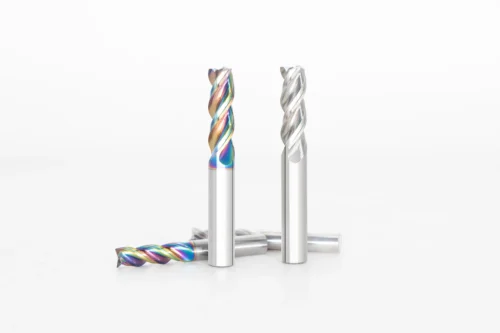

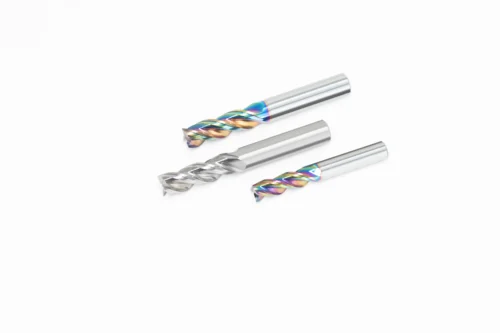

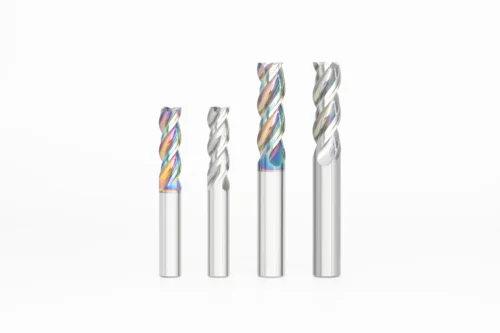

Product Name:3 flute flat end mills
|
Brand ： |
PUWEI |
|
End Mills specifications： |
3 flute |
|
Coating： |
PVD |
|
End mill product material： |
Tungsten steel |
|
Spiral Angle： |
35° |
|
Yieldly： |
ZhuZhou，HuNan，China |
What is the difference between 3-edge end mill and 2-flute end mill
The structural characteristics are different: the 3-flute end mill has 3 cutting flute, the 2-flute end mill has only 2 cutting flute, and the core will be thinner than the 3-flute.
The spiral Angle is different: the spiral Angle of the 3-flute end mill changes more, generally 30°, 45°, etc., and the spiral Angle of the 2-flute end mill is generally larger, generally between 40-60°

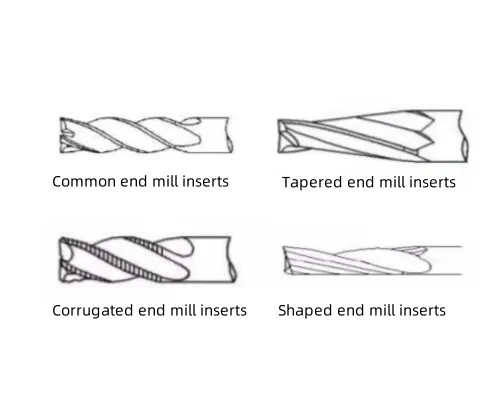

There are several different types of 3-edge end mills

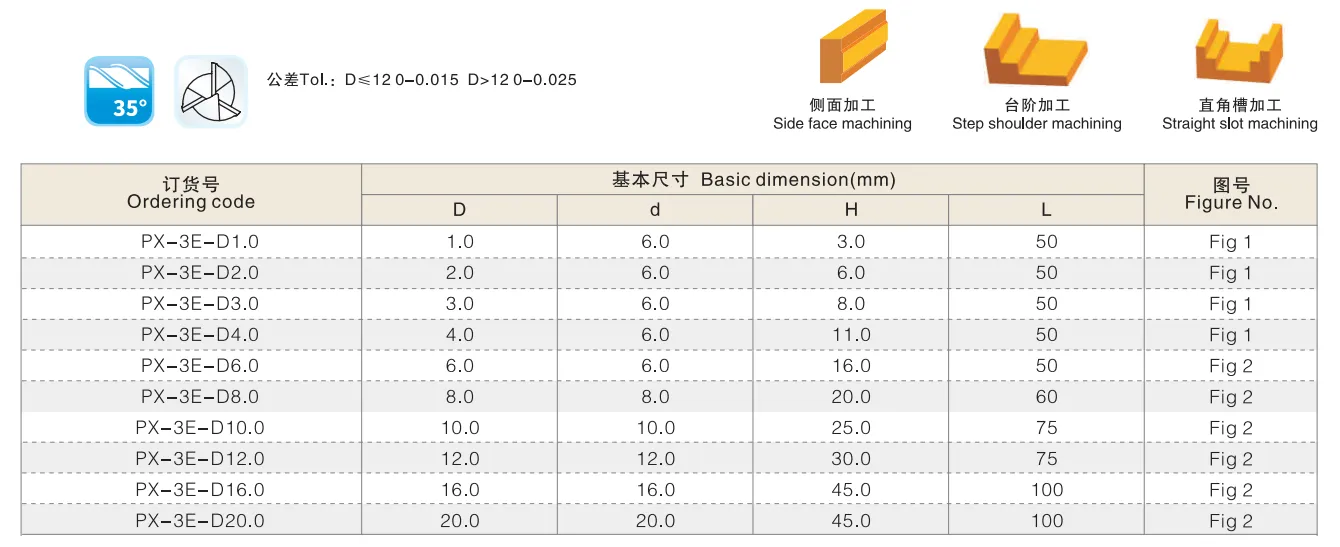

3 blade carbide end mills Product parameters:
3 blade end mill product use
The three edge end mill is suitable for processing materials: carbon steel, tool steel, alloy steel, stainless steel
The processing method for which the product is suitable：
The three edge end mill is suitable for machining methods: slotting, side machining, heavy machining, finishing
